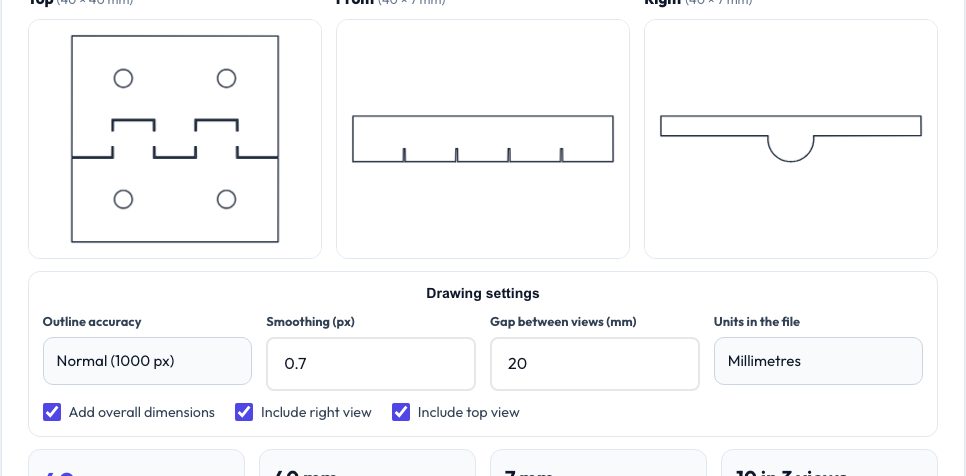

See STL to 2D Drawing — Top, Front & Side Views to SVG / DXF in action
Free STL to 2D Drawing — Top, Front and Side Views
Sometimes you only need the outline of a 3D part: a template for a laser-cut base, a cut-out for a fixture, or a quick three-view for documentation. This tool projects the model onto the top, front and right planes, traces the silhouette (holes included) and lays the three views out in third-angle projection with the overall width, depth and height.
The outline is accurate to one pixel of the chosen resolution, so a 100 mm part at 1000 px is within ±0.1 mm. Export the full sheet or any of the six views as DXF or SVG. Everything runs in your browser and the file is never uploaded.
Use it in 4 steps
Drop in the model.
Set the accuracy, view gap and units.
Review the three views.
Download the sheet or a single view as DXF or SVG.
Key features
Third-angle sheet
Front, top and right views positioned correctly with spacing you set.
Holes preserved
Through-holes and notches appear as inner outlines.
Overall dimensions
Width, height and depth added as dimension lines.
Six single views
Top, front, right, left, back and bottom.
A real example, step by step
A 40 × 25 × 20 mm block with a 6 mm hole through the top produces a front view of 40 × 20 mm, a top view of 40 × 25 mm with a circular inner outline and a right view of 25 × 20 mm.
Who uses this tool
Laser-cut makers
Templates and bases from 3D parts.
Machinists
Outlines for fixtures and soft jaws.
Documentation
Quick three-view drawings.
Students
Check projection exercises.
Tips for the best results
- Use Fine accuracy for small parts.
- Orient the model so Z is up before exporting.
- Add kerf with the offset tool before cutting.
- Check units — inch files need the inch setting.
Common mistakes to avoid
- Expecting hidden lines: only the outer silhouette and through-holes are drawn.
- Using it as a tolerance drawing.
- Forgetting to rotate models that were exported lying on their side.
Frequently asked questions
Is it first or third angle?
Third-angle layout, matching US and many Asian standards.
Does it include dimensions?
Overall width, height and depth only.
Can I use it in CAD?
Yes, import the DXF.
Is it free?
Yes and nothing is uploaded.
